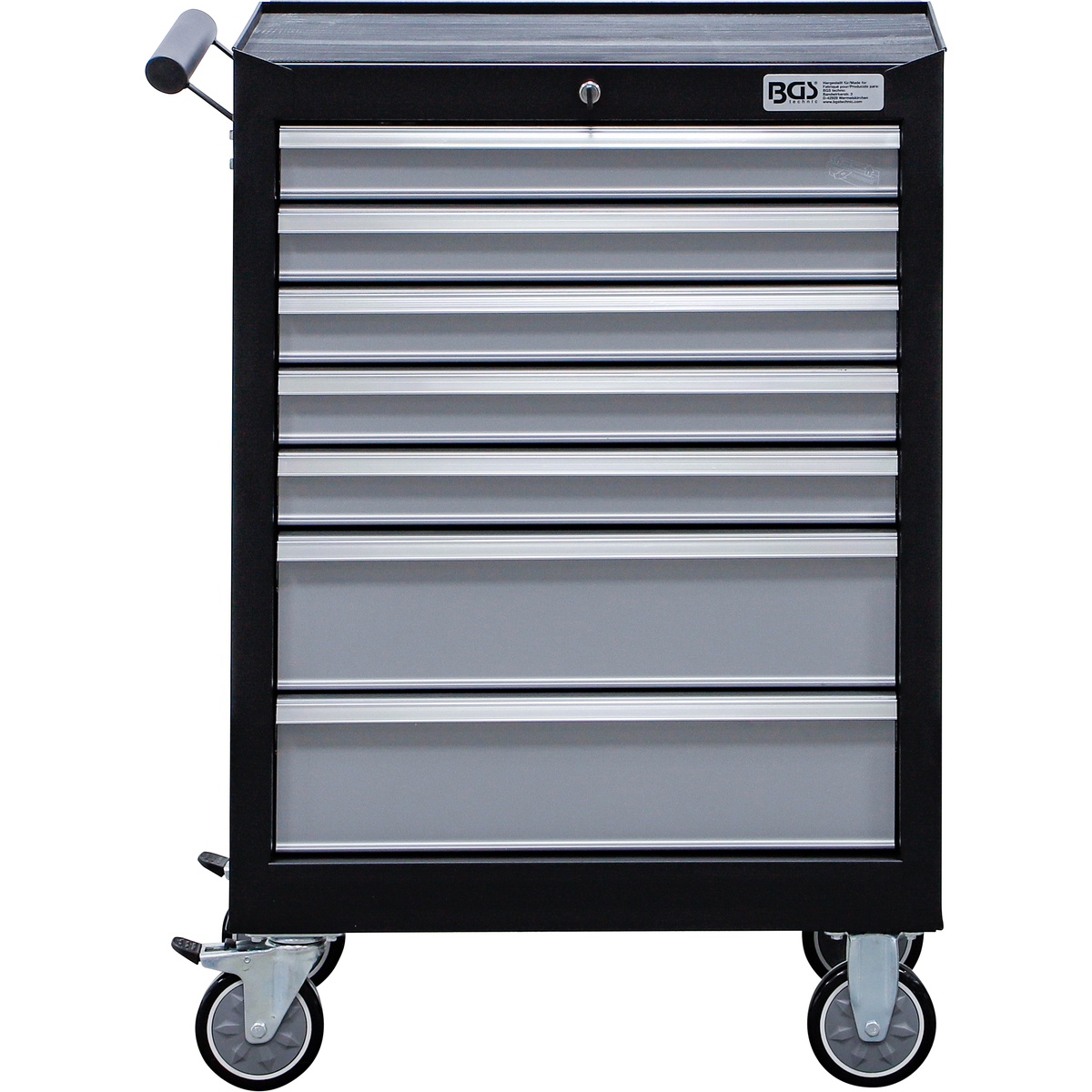

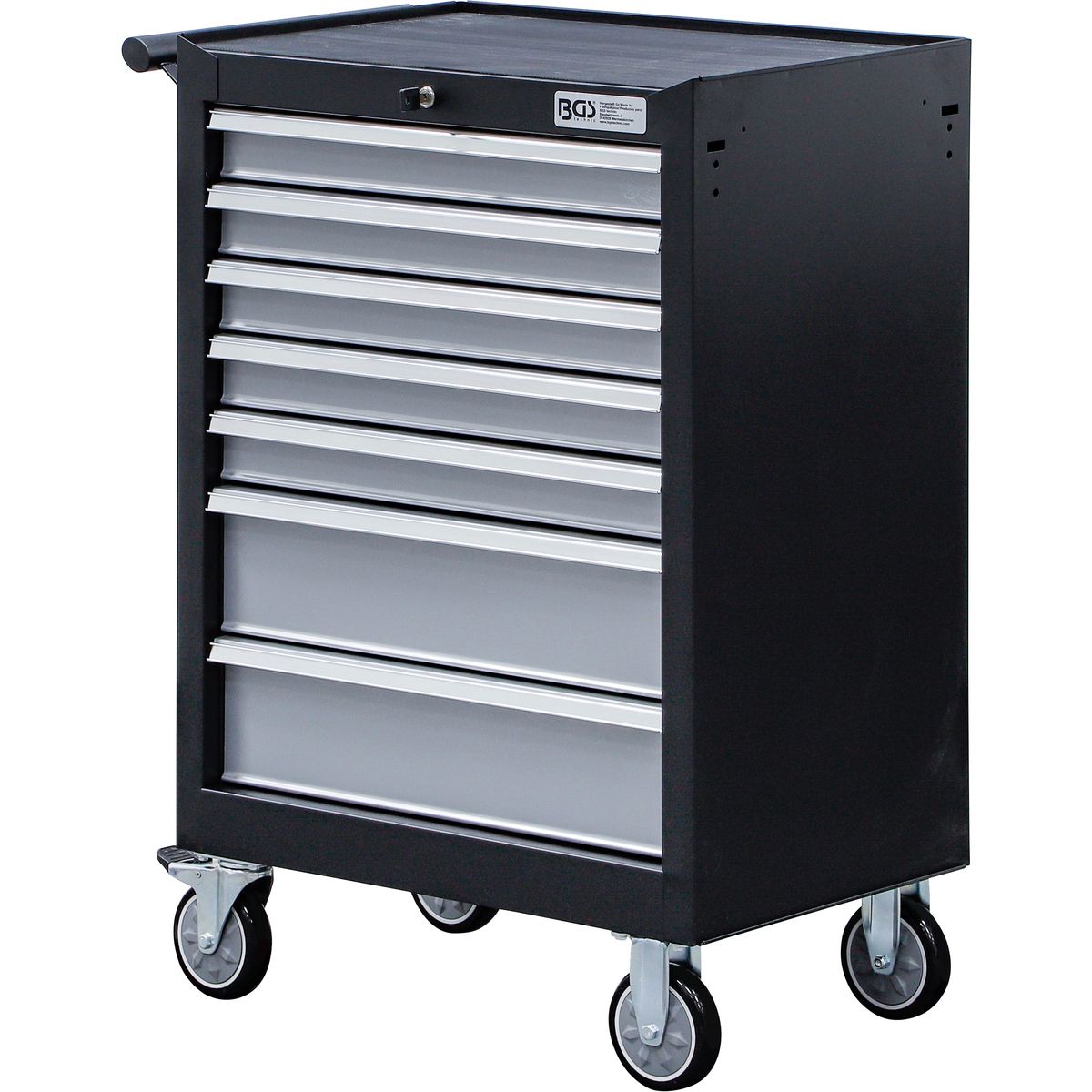

Workshop Trolley | 7 Drawers | with 120 Tools
- heavy duty workshop finish
- 9 tool trays, 1/3 made from high-resistance foam (dimensions 189 x 408 x 32 mm)
- stable sheet steel construction
- powder-coated body, particularly resistant to scratches
- heavy-duty, ball-bearing castors, including 2 lockable swivel castors
- with side handle for easy manoeuvring
- lockable with a central lock
- continuous handle strips
- 7 smooth-running drawers with ball-bearing slides:
- 1st to 5th drawer capacity up to 20 kg (each drawer)
- 6th to 7th drawer capacity up to 25 kg (each drawer)
- upper plate with rubber cover, capacity up to 50 kg
- drawer width (internal dimension): 565.8 mm
- drawer depth (internal dimension): 398 mm
- drawer height (internal dimension): 5 x 56.5 mm | 2 x 135.5 mm
- wall thickness body: 0.9 mm
- wall thickness drawers: 0.7 mm

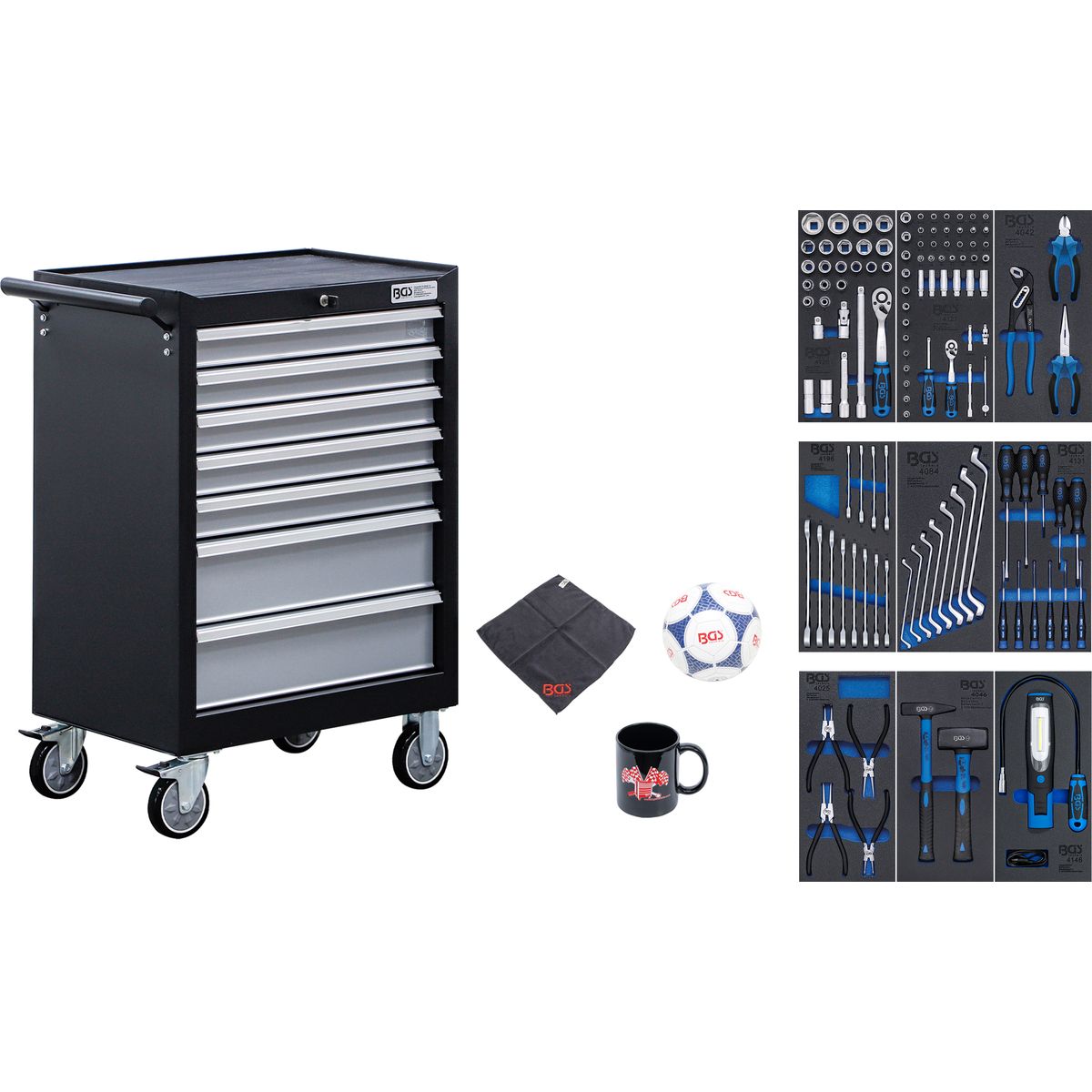

scope of delivery:

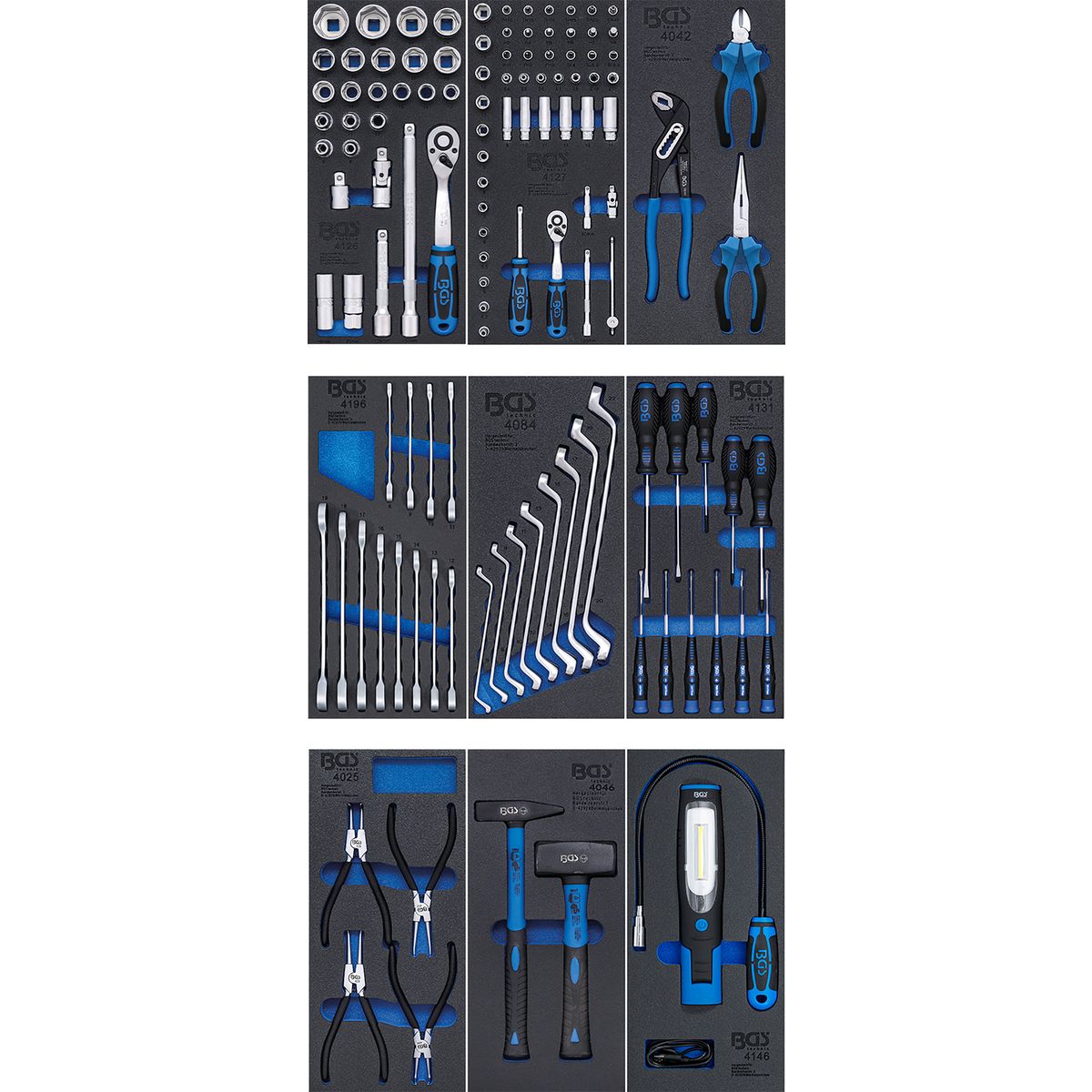

- 1 workshop trolley | 7 drawers | empty (BGS4235)
- 1 tool tray 1/3 socket set | 12.5 mm (1/2") | 27 pcs. (BGS4126)
- 1 tool tray 1/3 socket set | 6.3 mm (1/4 ") | 50 pcs. (BGS4127)
- 1 tool tray 1/3 pliers set | 3 pcs. (BGS4042)
- 1 tool tray 1/3 double ring spanner set | 6 x 7 - 20 x 22 mm | deep offset ends | 8 pcs. (BGS4084)
- 1 tool tray 1/3 screwdriver set | 11 pcs. (BGS4131)
- 1 tool tray 1/3 circlip pliers set | 4 pcs. (BGS4025)
- 1 tool tray 1/3 stoning and machinist's hammer set | 2 pcs. (BGS4046)
- 1 tool tray 1/3 ratchet combination wrench set | 8 - 19 mm | 12 pcs. (BGS4196)
- 1 tool tray 1/3 handheld lamp and magnetic lifter | 3 pcs. (BGS4146)
- 1 BGS football (BGSBALL)
- 1 microfibre cloth | 400 x 400 mm (BGSTUCH)
- 1 BGS coffee mug (BGSBECHER)
Technical data:
Castor diameter: 124 mmLoad-bearing capacity max.: 200 kg
Weight: 75810 g
Drawer pull-out: 100 %

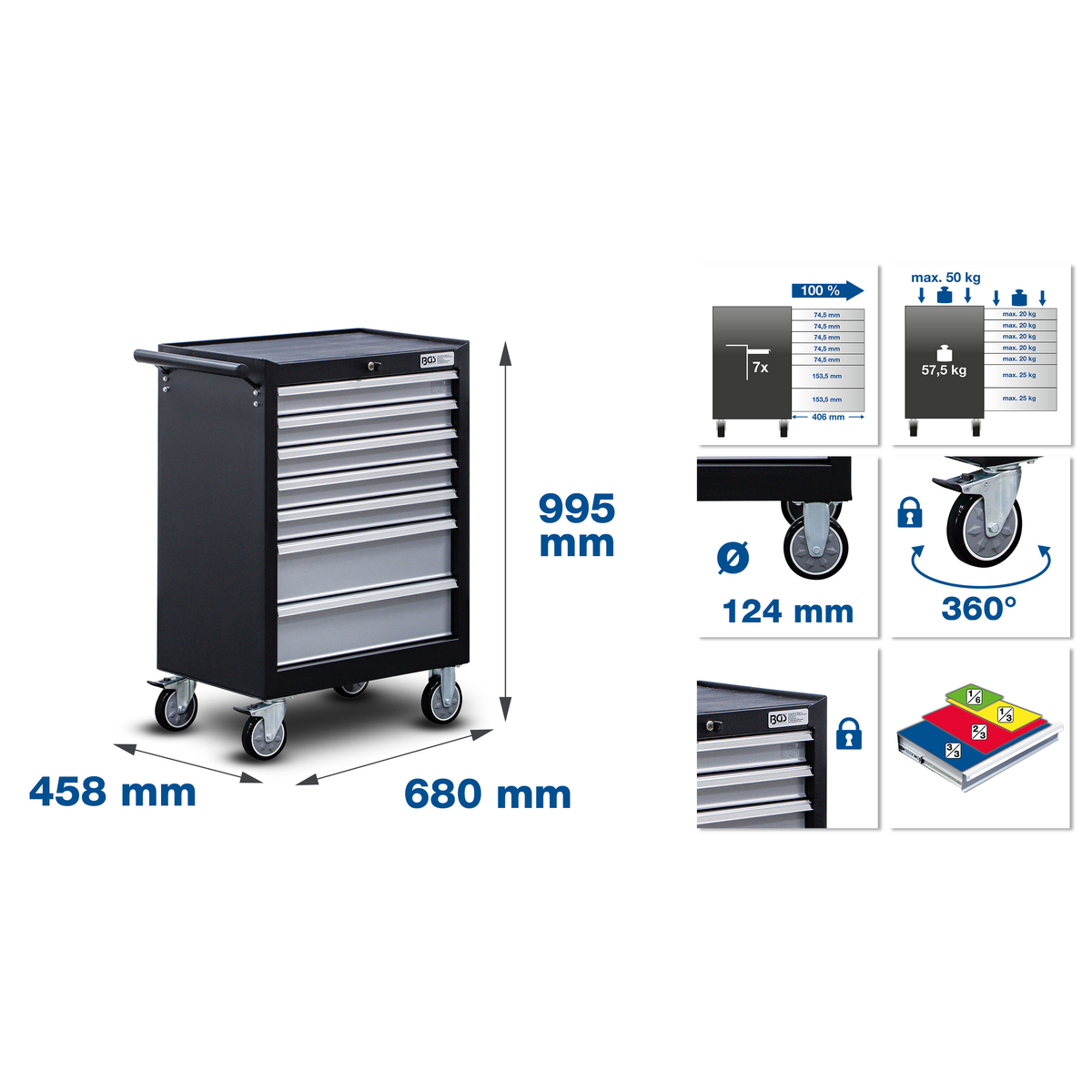

Width: 680 mm
Height: 995 mm
Drawer depth: 406 mm
Number of drawers: 7 Piece(s)
Drawer height: 5 x 74,5 | 2 x 153,5 mm
Depth: 458 mm
Roller width: 31 mm
Drawer width: 570 mm
