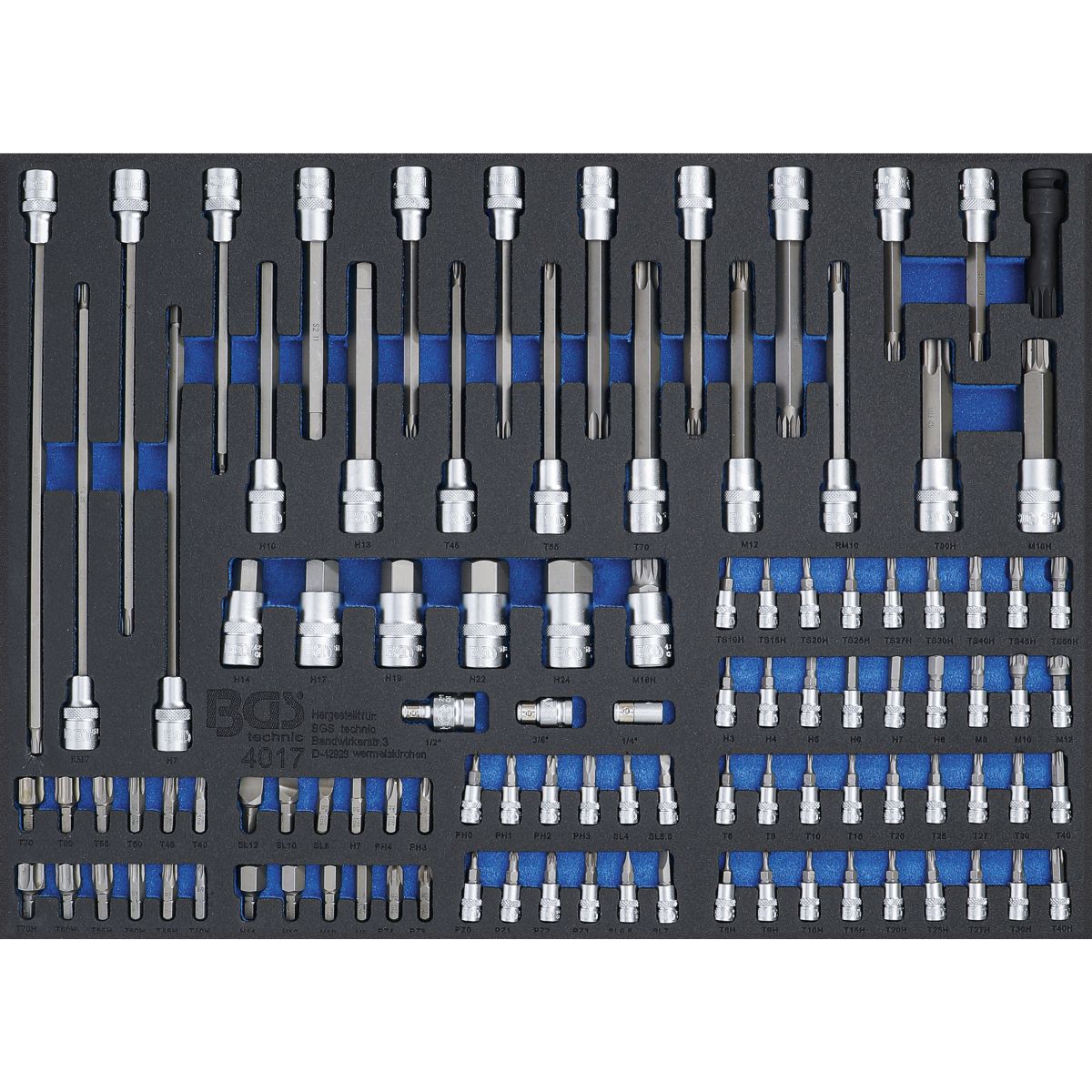

Tool Tray 3/3: Bit and Bit Socket | 104 pcs.

includes the following tools:

Bits 8 mm (5/16"), length 30 mm:

• slot: 8 - 10 - 12 mm
• cross slot PH: PH3 - PH4
• cross slot PZ: PZ3 - PZ4
• T-Star (for Torx): T40 - T45 - T50 - T55 - T60 - T70
• T-Star tamperproof (for Torx): T40 - T45 - T50 - T55 - T60 - T70
• internal hexagon: 7 - 8 - 10 - 12 - 14 mm
• bit adaptor hexagon 6.3 mm (1/4) to hexagon 8 mm (5/16")

Bit Sockets, 6.3 mm (1/4") drive, length 35 mm:

• slot: 4 - 5.5 - 6.5 - 7 mm
• cross slot PH: PH0 - PH1 - PH2 - PH3
• Cross slot PZ: PZ0 - PZ1 - PZ2 - PZ3
• T-Star (for Torx): T8 - T9 - T10 - T15 - T20 - T25 - T27 - T30 - T40
• T-Star tamperproof (for Torx): T8 - T9 - T10 - T15 - T20 - T25 - T27 - T30 - T40
• Spline (for XZN): M8 - M10 - M12
• internal hexagon: 3 - 4 - 5 - 6 - 7 - 8 mm
• TS-Star: TS10 - TS15 - TS20 - TS25 - TS27 - TS30 - TS40 - TS45 - TS50

Bit Sockets, drive 12.5 mm (1/2") drive:

• length 55 mm, internal hexagon: 14 - 17 - 19 - 22 - 24 mm
• length 140 mm, internal hexagon: 10 - 11 - 13 mm
• length 140 mm, Spline (for XZN): M10 - M12 - M14
• length 240 mm, Spline (for Ribe): R7 -R8
• length 140 mm, T-Star (for Torx): T40 - T45 - T50 - T55 - T60 - T70

Special Sizes, 12.5 mm (1/2") drive

• Spline (for XZN) M9 x 100 mm - M16 x 100 mm
• Spline tamperproof (for XZN) M16 x 53 mm
• impact bit socket spline (for XZN) M18 x 78 mm
• T-Star (for Torx) T80 x 100 mm - T30 x 300 mm
• internal hexagon 7 x 230 mm
• inner hexagon ball point, 5 x 160 mm
• Spline (for Ribe) R9 x 100 mm - R10 x 140 mm

• height of the insert without tools: 32 mm

Technical data:

Gross weight: 6210 g
Width: 567 mm
Height: 39 mm
Depth: 408 mm
Material: Chrome Vanadium Steel
