Tool Tray 1/3: Engine Timing Tool Set | for Land Rover, Jaguar V8

• for adjusting and checking the engine timing
• required for e.g. working on valve drive and renewing the cylinder head gasket

suitable for 3.2, 3.5, 4.0, 4.2, 4.4L engines in the following models:

• Jaguar XJ8 (97-09), engine AJ26 AC, BC, LC, 1B, 5G, SB
• Jaguar XJR (97-09), engine AJ27 KB, CC, MA, 2B, 9G, TB
• Jaguar S-Type (99-08), engine AJ28 KC, CE, MB, 3B, HB, PC
• Jaguar XF (08-09), engine AJ34 3.5, DC, NB, 1G, HG
• Jaguar XK8 (97-09), engine RB, EC, NC
• Jaguar XKR (98-09), engine GB, PA
• Range Rover (new) (06-09), 4.2L engine (428 HP)
• Range Rover (05-09), 4.2L engine (428 HP)
• Land Rover Discovery III (05-09)

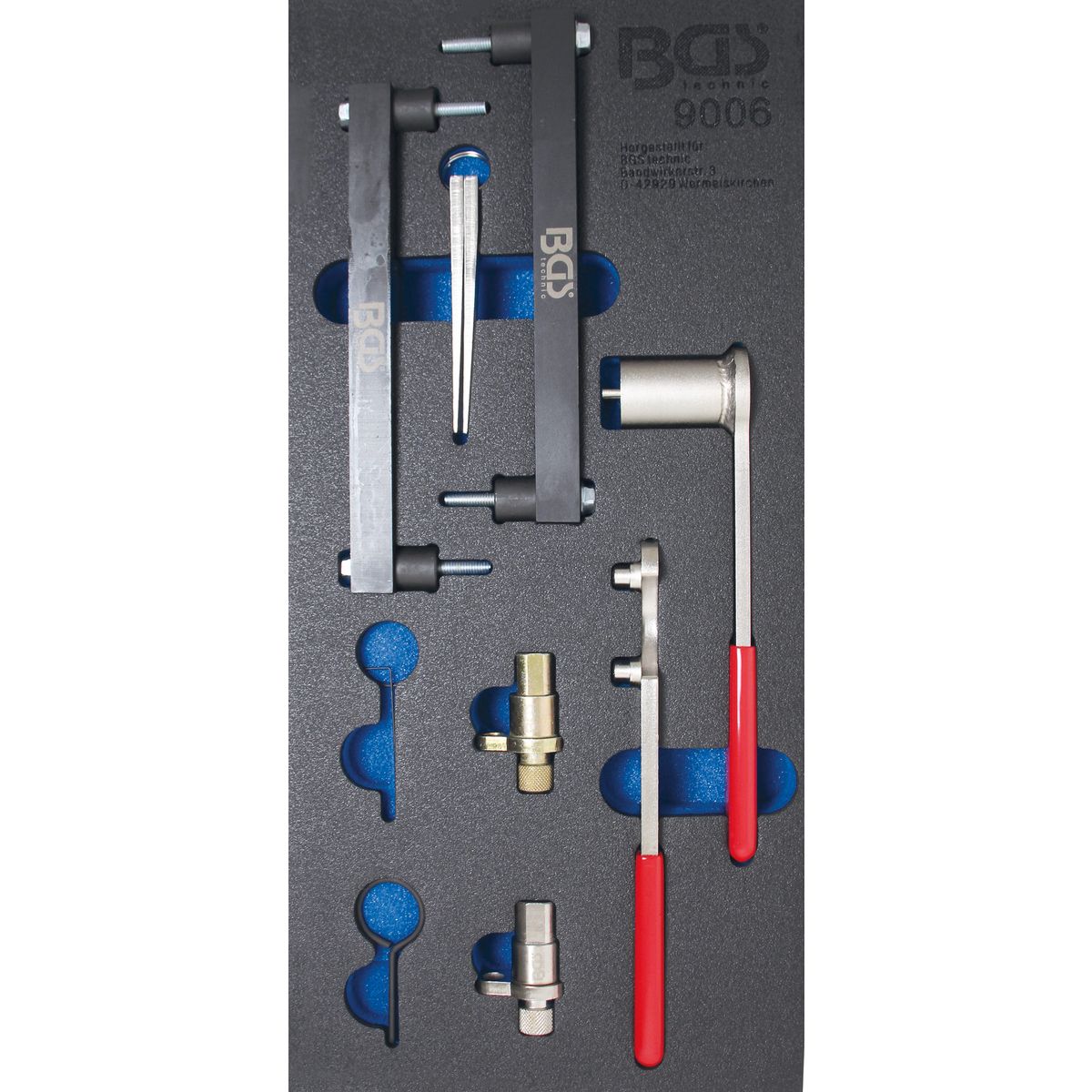

scope of delivery:

• flywheel locking pin (silver), to be used as OEM 303-531
• flywheel locking pin (gold), to be used as OEM 303-645
• 2 camshaft setting plates, to be used as OEM 303-530
• camshaft gear holding tool, to be used as OEM 303-532
• 2 tensioner wedges, to be used as 303-533
• primary tensioner locking pin, to be used as OEM T40011
• setting tool for VVT unit, to be used as OEM 303-654
• tensioner depress pin

Technical data:

To be used as OEM2: 303-531 | 303-645 | 303-530 | 303-532 | 303-533 | 303-654 Land Rover
To be used as OEM6: T40011 Volkswagen
To be used as OEM4: T40011 Seat
To be used as OEM5: T40011 Skoda
Gross weight: 2050 g
To be used as OEM1: 303-531 | 303-645 | 303-530 | 303-532 | 303-533 | 303-654 Jaguar
To be used as OEM3: T40011 Audi
