Go-Through Socket Set | Gear Lock | 4.5 - 25 mm | 52 pcs.

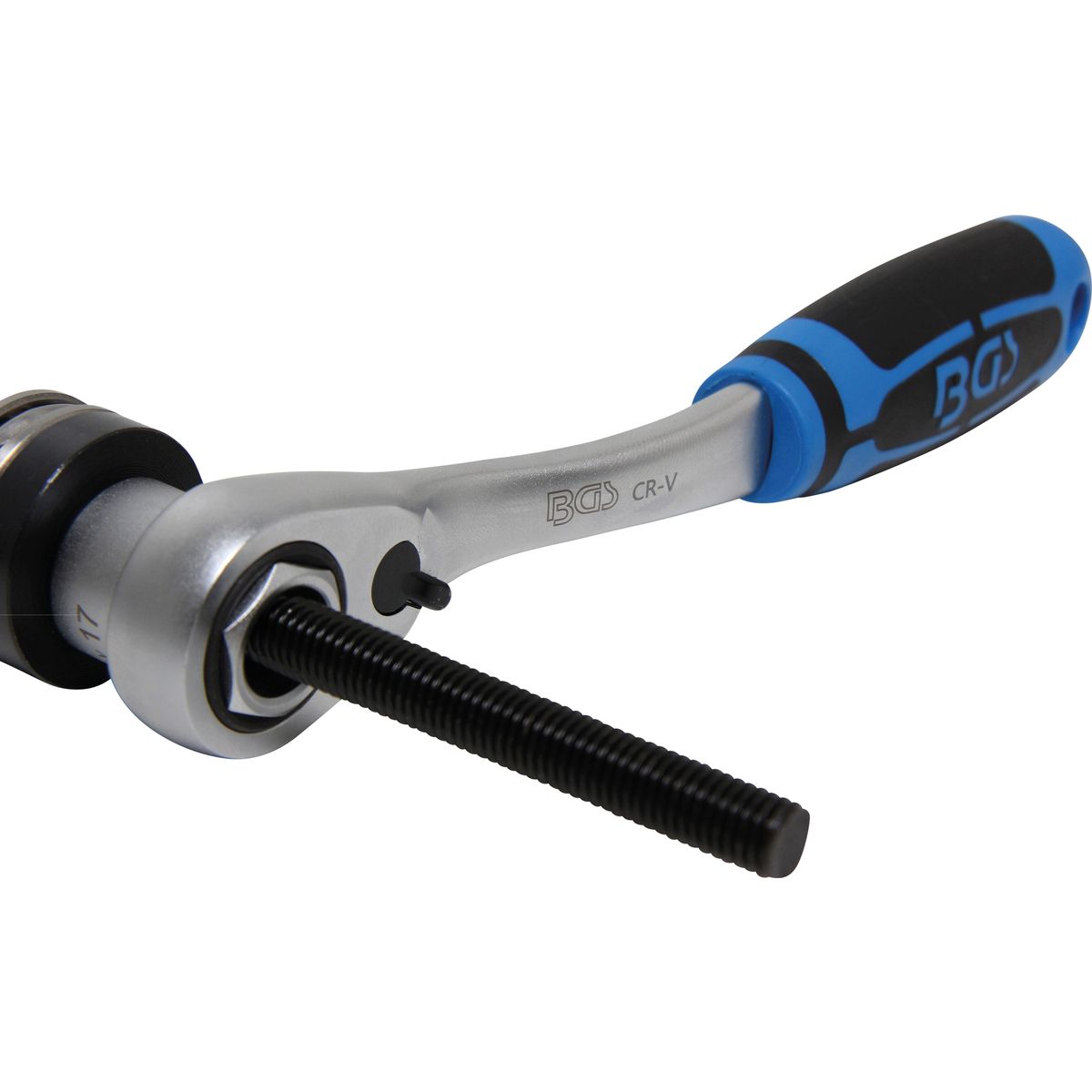

• especially suitable for screw connections with long thread overhang, e.g. threaded rods
• no limited depth like "normal" sockets

includes the following tools:

13 mm hex. drive

• go-through ratchet, 72 teeth, 13 mm inner hex.
• extension bar, 75 mm, with go-through hole
• 11 sockets, Gear Lock, length 25 mm sizes: 4.5 - 5 - 5.5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 mm
• adaptor, 13 mm outer hex. to 6.3 mm 1/4" outer square
• bit adaptor, 13 mm outer hex. to 6.3 mm (1/4") inner hex., allows the ratchet be used as a standard 6.3 mm (1/4") ratchet
• adaptor, 13 mm inner hex. to 6.3 mm (1/4") inner square, to use the extension bar

19 mm hex. drive

• go-through ratchet, 72 teeth, 19 mm inner hex.
• extension bar, 75 mm, with go-through hole
• 11 sockets, Gear Lock, length 30 mm sizes: 8 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 mm
• adaptor, 19 mm outer hex. to 10 mm (3/8") inner hex., allows the ratchet be used as a standard 10 mm (3/8") ratchet
• adaptor, 19 mm inner hex. to 10 mm (3/8") inner square, to use the extension bar

22 mm hex. drive

• go-through ratchet, 72 teeth, 22 mm inner hex.
• extension bar, 75 mm, with go-through hole
• 7 sockets, Gear Lock, lenght 38mm: SW 19 - 20 - 21 - 22 - 23 / lenght 42 mm: 24 - 25 mm
• adaptor, 22 mm outer hex. to 12.5 mm (1/2") inner hex., allows the ratchet be used as a standard 12.5 mm (1/2") ratchet
• adaptor, 22 mm inner hex. to 12.5 mm (1/2") inner square, to use the extension bar

Bits, drive outer hex. 6.3 mm (1/4"):

• 2 slots: 4 - 5 mm
• 2 cross slots: PH1 - PH2
• 3 T-Star (for Torx): T10 - T15 - T20
• 3 internal hexagon: 4 - 5 - 6 mm

Technical data:
